Models

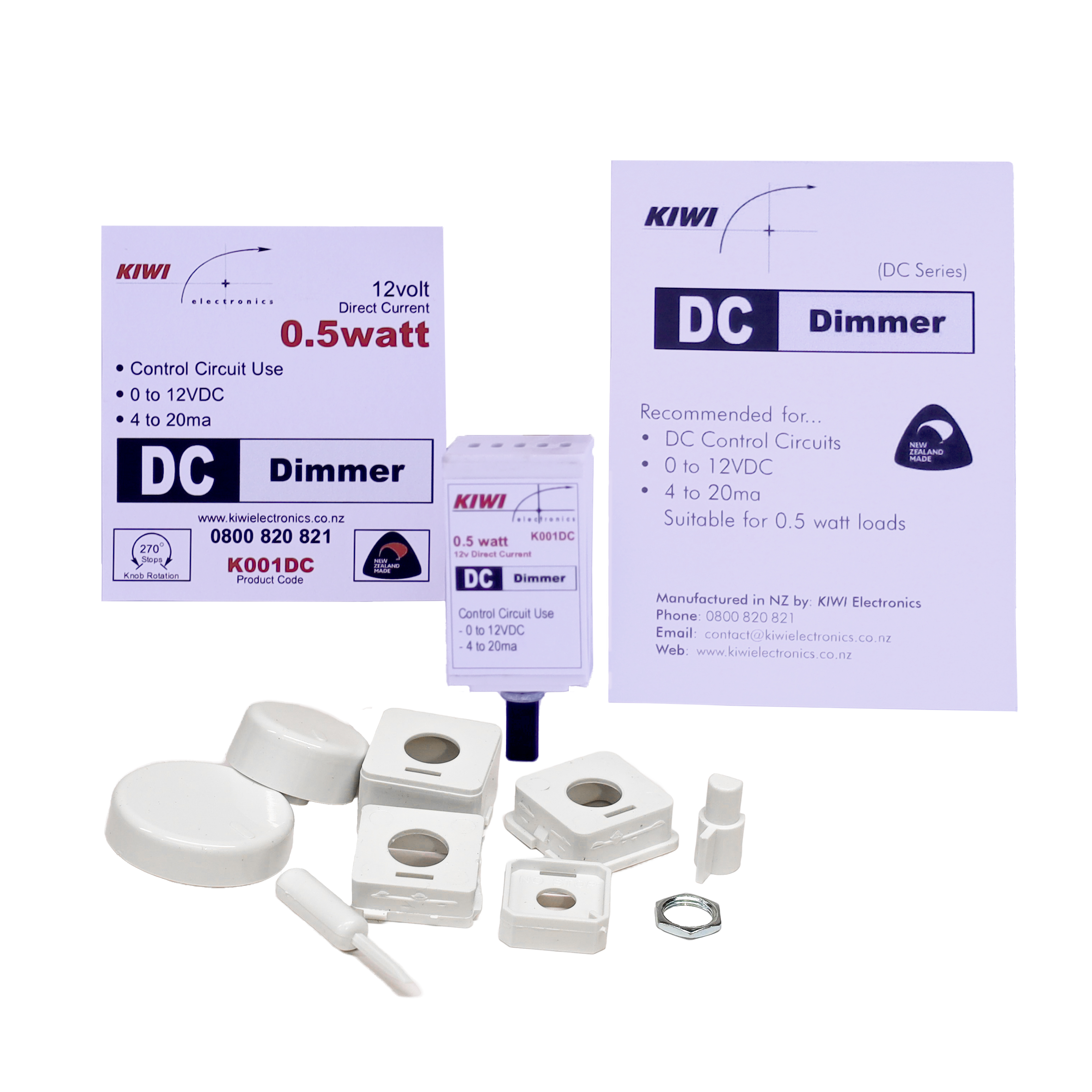

Our DC series DC Dimmers are available in the following models:
- K001DC, 0.5 watts
DC Dimmer
Product Description
• DC Control Circuits
• 10VDC input
• PWM Full Variable Control
• Variable Resistor models
• Press Mech Dimming
• High Low levels (installer defined)
• Delay OFF Timer (installer set time)
Models
K001DC – DC Variable Resistor
• Standard full range control
• Minimum and Maximum (setable limits)
K001DCU – DC UNIVERSAL
• Standard full range control
• Minimum and Maximum (setable limits)
• Delay OFF Timer (variable time)
• Switch High Low (setable levels)
K001DCUW – DC Press Mech
• ALL functions of the UNIVERSAL above … PLUS
• Press Mech/Push Button/Momentary Switch
control option for multiple remote locations of
On, Off, Up, Down Control.
All you need for Low Voltage control of EC Fans and LED Lighting.
Connect GND, Input low voltage, then connect to the control input of your device, and you will have full control over the entire range.
Default is full range of voltage or set the minimum and or maximum trimmers with the screwdriver supplied, and you will have established the range your customer can control.
Use the KIWI to control the ON/OFF by connecting to the Delay OFF Timer terminal and set the delay time you require. When the user switches the terminal, the circuit will continue running until the delay times out. The circuit will only come back ON when they switch ON again removing voltage to the terminal.
Connecting to the High Low terminal ensures the application goes to wherever the maximum trimmer is set. Want a fan to go full speed with delay OFF, link Delay OFF Timer and High Low together.
Press Mech, Push Button, Momentary Switch dimming, call it what you want, the K001DCUW does it all, full push button control, and with ease.
Applications
- 0 to 10 volt DC dimming
- 4 to 20 ma dimming
